Introduction

Three years ago, I knew absolutely nothing about solar power. I thought solar panels just magically made electricity, batteries were simple storage boxes, and “going off-grid” meant buying some panels and plugging them in. I had no idea what an inverter did, why charge controllers mattered, or how batteries actually worked with solar panels.

Then I spent six months researching, planning, and building my first off-grid solar system. I made expensive mistakes, learned hard lessons, and eventually created a system that’s powered my home reliably for over two years. Looking back, I wish someone had given me a complete, honest overview of how everything actually works—not the dumbed-down marketing materials or the overly technical engineering explanations, but a practical guide that explained the whole system in plain English.

Here’s what confused me most as a beginner: every guide assumed I already knew the basics. They’d talk about “MPPT charge controllers” and “inverter sizing” without explaining what these things actually do or why they matter. They’d show wiring diagrams without explaining what happens to the electricity at each step. They’d give component recommendations without explaining how the pieces work together as a system.

Most solar guides fall into two categories: oversimplified marketing that makes everything sound easy and cheap, or technical manuals written by engineers for other engineers. Neither helps beginners who need to understand the complete picture before spending $20,000-50,000 on equipment. You need to know how solar panels create electricity, why batteries are essential for off-grid (but optional for grid-tied), what inverters actually do and why they’re so expensive, how charge controllers maximize panel output and protect batteries, and how all these components work together as an integrated system.

I’m going to explain off-grid solar power the way I wish someone had explained it to me: starting with the basic concept, building up to how each component works, showing you how to size everything for your needs, walking through the installation process step-by-step, and giving you realistic expectations about costs, complexity, and what off-grid living is actually like. By the end, you’ll understand the complete system and be ready to either DIY your setup or work intelligently with professional installers.

This isn’t a theoretical guide—it’s based on actually building and living with an off-grid system for years, making mistakes, fixing them, and learning what actually matters versus what’s just marketing hype. If you’re starting from zero knowledge about solar power, this is the guide I wish I’d had.

What “Off-Grid Solar” Actually Means

Before we dive into components and installation, you need to understand what “off-grid” actually means and whether it’s what you really want. This matters because off-grid and grid-tied solar are completely different systems with different costs, complexity, and use cases.

Grid-tied vs off-grid: fundamental difference:

The difference is simple but has huge implications:

Grid-tied solar:

• Your home is connected to utility power company
• Solar panels generate power during the day
• Excess power flows back to utility (net metering in many states)
• Utility provides power at night and during cloudy weather
• No batteries required (though increasingly popular as backup)
• Lower cost: $15,000-25,000 typical for home system
• Simpler installation and maintenance

Off-grid solar:

• Your home has ZERO connection to utility power
• Solar panels generate power during the day
• Batteries store excess power for nighttime use
• No utility backup—you’re completely independent
• Batteries absolutely required
• Higher cost: $30,000-50,000+ for home system
• More complex installation and maintenance

The key difference: Grid-tied uses the utility as a “virtual battery” (send power during day, use power at night). Off-grid requires actual batteries because there’s no grid connection.

Off-grid = completely independent from utility power:

When I say “off-grid,” I mean:

• No power lines connected to your property
• No monthly electric bill (ever!)
• No reliance on utility company
• Complete energy independence
• You produce 100% of your power

Not off-grid:

• “I have solar panels but still pay electric bills” (grid-tied with solar)
• “I have backup batteries for outages” (grid-tied with battery backup)
• “I generate most of my power from solar” (still grid-tied if there’s a connection)

True off-grid means the utility could shut down completely and you wouldn’t notice (except you’d stop reading about their outages on social media!).

No connection to power company:

Literally zero physical connection:

• No power meter
• No service entrance from utility
• No utility account
• No monthly bills
• No dependency on their infrastructure

My property: There’s no power line to my house. The nearest utility pole is 2 miles away. Even if I wanted grid power, the connection cost would be $50,000+. Off-grid wasn’t a choice—it was necessity.

All power from solar + batteries:

Every watt of power in my house comes from:

Primary: Solar panels charging batteries Secondary: Backup generator charging batteries (60-90 hours per year) Always through batteries: All house power flows through battery bank

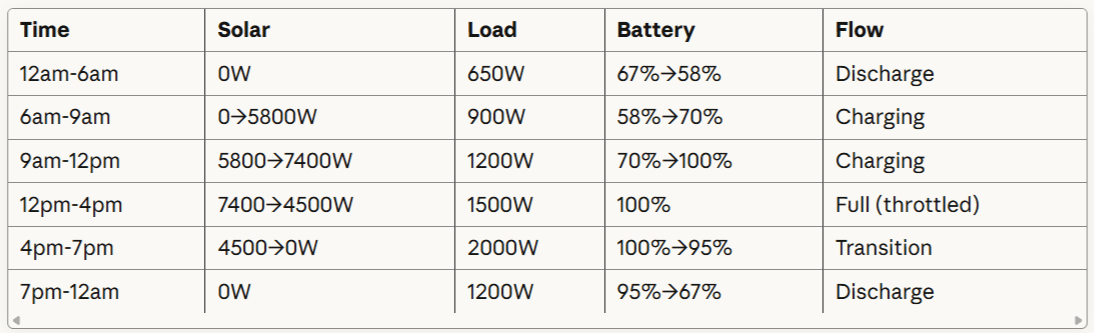

On a typical day:

• Morning: batteries discharge from overnight use
• Mid-day: panels generate power, charge batteries, power house
• Evening: batteries fully charged, panels declining
• Night: batteries provide all power

This cycle repeats daily. No grid, no outside power, complete independence.

Backup generator typically included:

Here’s reality: almost every off-grid system includes a backup generator, and it’s not cheating!

Why generators are necessary:

• Extended cloudy weather (3-7 days happens)
• Winter production can be 50% of summer
• Unexpected high usage
• Emergency backup if solar/battery fails

My generator use: 60-90 hours per year

• Concentrated in winter (November-January)
• Mostly during multi-day cloudy spells
• Charges batteries when solar insufficient

This doesn’t mean my system “failed”—it means I designed realistically. The alternative would be doubling my solar array and battery bank ($20,000+ more) to eliminate those 60-90 hours of generator use. Not worth it!

Why people choose off-grid:

Different reasons drive off-grid decisions:

No grid access (my situation):

• Rural properties without utility service
• Grid connection cost prohibitive ($30,000-100,000+ for long runs)
• Off-grid solar cheaper than paying for utility connection

Energy independence:

• Philosophical desire for self-sufficiency
• Don’t want to depend on utility companies
• Homesteading lifestyle
• Distrust of grid reliability

Environmental values:

• Want renewable energy
• Reduce carbon footprint
• Clean energy production
• Though grid-tied solar is also renewable!

Lifestyle choice:

• Off-grid living appeals emotionally
• Pride in energy independence
• Learning and challenge
• Connection to natural rhythms

When grid-tied makes more sense (most situations!):

I need to be honest: for most people, grid-tied solar makes more financial and practical sense:

Grid-tied advantages:

• Costs 40-60% less ($15-25k vs $30-50k)
• Simpler system (no batteries unless you want backup)
• Less maintenance
• Net metering pays you for excess production
• Utility backup for cloudy weather
• No generator needed

Grid-tied disadvantages:

• Still depend on utility company
• Monthly grid connection fees (even if net-zero)
• Power outages affect you (unless you add batteries)
• Subject to rate increases

When grid-tied is clearly better:

• Grid available and reliable
• Net metering available in your state
• Budget under $30,000
• Don’t want complexity of batteries
• Electricity costs high (makes solar more economical)

When off-grid makes sense:

• No grid available (or $50,000+ connection cost)
• Unreliable grid (frequent extended outages)
• Strong desire for complete independence
• Off-grid lifestyle important to you
• Cost difference not a major concern

Hybrid systems: grid-tied with battery backup:

The middle ground many people choose:

How it works:

• Connected to grid (have utility power)
• Solar panels generate power
• Batteries provide backup during outages
• Net metering with utility
• Grid powers home when solar/battery insufficient

Advantages:

• Grid reliability + solar benefits + outage protection
• Smaller battery bank than full off-grid (1-2 days vs 2-3 days)
• Can still use net metering
• Best of both worlds?

Disadvantages:

• Most expensive option (solar + batteries + grid connection)
• More complex than pure grid-tied
• Still pay monthly utility fees
• More equipment to maintain

Cost: $25,000-40,000 typically (between grid-tied and off-grid)

My definition: off-grid means zero reliance on utility:

For this guide, off-grid means:

• No physical connection to utility grid
• All power from solar panels and batteries
• Backup generator provides emergency power
• Complete energy independence

If you’re still connected to the grid in any way, you’re grid-tied (even if you have batteries and solar). That’s fine! Grid-tied with solar is great. But it’s a different system than what this guide covers.

Common misconceptions about off-grid solar:

Let me clear up confusion I see constantly:

Misconception 1: “Off-grid means no generator” Reality: Most off-grid systems have backup generators. It’s smart, not cheating.

Misconception 2: “Off-grid is cheaper than grid power” Reality: Off-grid costs more upfront and often more long-term than staying on grid.

Misconception 3: “Just add batteries to grid-tied system for off-grid” Reality: Off-grid requires completely different system design and way more batteries.

Misconception 4: “Solar panels work during outages if you have panels” Reality: Grid-tied solar shuts down during outages (safety requirement) unless you have batteries.

Misconception 5: “Off-grid means living like a caveman” Reality: Modern off-grid homes can run AC, full appliances, everything—if system is sized right.

Misconception 6: “You can just disconnect from grid and go off-grid” Reality: Requires complete system redesign, different equipment, much larger battery bank.

Now that you understand what off-grid actually means and whether it’s what you want, let’s dive into how off-grid solar systems actually work.

---

The Five Essential Components of Off-Grid Solar

Every off-grid solar system has five essential components that work together as an integrated system. You can’t skip any of these—each serves a critical function. Let me explain what each component does and how they work together.

Overview of complete system:

Think of an off-grid solar system like a living organism—every part has a specific job:

1. Solar panels = lungs (gather energy from environment)
2. Charge controller = brain (manages energy intelligently)
3. Battery bank = stomach (stores energy for later)
4. Inverter = hands (converts energy to usable form)
5. Backup generator = emergency reserves (insurance when system stressed)

All five must work together. Remove one and the system fails.

Solar panels (generate power from sun):

What they do: Convert sunlight into DC (direct current) electricity

How they work: Photovoltaic cells made of silicon react to sunlight, creating electrical current through the photovoltaic effect (more on this later).

Output: DC electricity at specific voltage (typically 30-50V per panel)

My system: 20 panels × 400W each = 8,000W (8 kW) total capacity

Function in system: Primary power generation. Everything else depends on panels producing power.

Charge controller (manages panel output to batteries):

What it does: Regulates power from panels to batteries safely and efficiently

Why needed: You can’t connect panels directly to batteries—voltage varies too much and would damage batteries.

How it works: Monitors panel voltage/current and battery state, adjusts power flow to optimize charging while protecting batteries.

Types: PWM (simple, cheap) or MPPT (advanced, efficient—what you want)

My system: Victron SmartSolar 250/100 MPPT controller

Function in system: The “brain” that manages energy flow from panels to batteries.

Battery bank (stores energy for nighttime/cloudy days):

What it does: Stores excess solar energy as chemical energy for later use

Why needed: Sun only shines during day, but you need power 24/7. Batteries provide power when sun doesn’t.

How it works: DC electricity charges batteries (converts electrical to chemical energy), discharging releases that energy back as DC electricity.

Types: Lithium (LiFePO4) or lead-acid (lithium strongly recommended)

My system: 48V, 720Ah lithium (LiFePO4) = 34.5 kWh total, 27.6 kWh usable

Function in system: Energy storage buffer—smooths out the mismatch between when sun produces power (day) and when you need it (24/7).

Inverter (converts DC to AC for household use):

What it does: Converts DC power from batteries to AC power your home needs

Why needed: Batteries store DC, but household appliances need AC power (120V/240V)

How it works: Rapidly switches DC on/off in specific pattern to create smooth AC sine wave

Types: Pure sine wave (required for sensitive electronics) or modified sine wave (avoid!)

My system: Victron Quattro 48/10000—produces 10,000W continuous AC power

Function in system: The “translator” between your DC battery system and AC household electrical system.

Backup generator (insurance for extended cloudy weather):

What it does: Provides power when solar/batteries insufficient

Why needed: Extended cloudy periods drain batteries, winter production can be inadequate, emergencies happen

How it works: Burns fuel (gas/propane) to spin alternator, producing AC power to charge batteries or power house

Types: Portable gas/propane generators or permanent standby generators

My system: 7000W dual-fuel generator (runs on gasoline or propane)

Function in system: Safety net for worst-case scenarios—cloudy weeks, winter shortfalls, equipment failures.

How these five components work together:

Let me trace power flow through the complete system:

Sunny day operation:

1. Sunlight hits panels → panels generate DC electricity (vary 30-50V depending on sun intensity)
2. Panels connect to charge controller → controller sees 400W × 20 panels = up to 8000W available
3. Charge controller optimizes panel output → extracts maximum possible power through MPPT algorithm
4. Controller sends power to batteries → batteries charge (if below 100%) at controlled voltage/current
5. House loads draw power → inverter pulls DC from batteries, converts to AC, powers house
6. Excess power stored → if panels producing more than house uses, batteries charge with surplus

Nighttime operation:

1. Panels produce nothing → it’s dark, panels output zero
2. House loads draw power → inverter still powering house
3. Batteries provide all power → batteries discharge to supply inverter
4. Battery level decreases → might go from 100% at sunset to 60% at sunrise

Cloudy day operation:

1. Panels produce reduced power → maybe 10-30% of sunny day production
2. Not enough to power house + charge batteries → production < consumption
3. Batteries make up difference → batteries discharge to supplement low production
4. If multi-day cloudy spell → batteries eventually get low (20-30%)
5. Generator starts → provides power to charge batteries back up

How components talk to each other:

Modern systems communicate digitally:

My system communication:

• Charge controller monitors panels and batteries
• Inverter monitors batteries and AC loads
• All components connect via VE.Bus (Victron’s communication protocol)
• I monitor everything via Bluetooth app and internet portal
• System makes automatic decisions based on battery state

Example auto-decision: If batteries drop below 30%, inverter can automatically start generator to charge them back up (I don’t use this feature but it’s available).

Why you need ALL five components:

People ask: “Can I skip the _____ to save money?”

Skip panels? No power generation—system doesn’t work Skip charge controller? Fry your batteries—system doesn’t work safely Skip batteries? No power at night—defeats purpose of off-grid Skip inverter? No AC power—unless you convert everything to DC (impractical) Skip generator? You’ll regret it during first week-long cloudy spell

All five are essential. Budget for all of them.

My system overview as concrete example:

Let me give you the complete specs of my working system:

Solar panels: 20× 400W monocrystalline panels = 8 kW array

• Ground-mounted on adjustable racking
• South-facing, 30° tilt angle
• Cost: $5,200 for panels

Charge controller: Victron SmartSolar 250/100 MPPT

• Handles up to 100A charging current
• Max input voltage 250V
• Bluetooth monitoring
• Cost: $850

Battery bank: 48V, 720Ah LiFePO4 lithium

• Total capacity: 34.5 kWh
• Usable capacity: 27.6 kWh (80% DOD)
• Two strings of 16× 3.2V 360Ah cells
• Cost: $16,800 including BMS

Inverter/Charger: Victron Quattro 48/10000/140

• 10,000W continuous output
• 20,000W surge capacity
• Built-in 140A battery charger
• Pure sine wave output
• Cost: $4,200

Backup generator: Champion 7000W dual-fuel

• Runs on gasoline or propane
• Electric start
• Used 60-90 hours per year
• Cost: $1,250

Total major components: $28,300 Plus mounting, wiring, protection equipment, installation: $3,700 Complete system cost: $32,000

This system reliably powers my 2000 sq ft home consuming 18 kWh/day year-round with minimal generator use.

Understanding these five components and how they work together is the foundation of off-grid solar. Everything else in this guide builds on this basic understanding. Don’t proceed until this makes sense!

---

Solar Panels Explained: How They Generate Power

Solar panels are where everything starts—they’re the primary power source for your entire system. Let me explain how they actually work in terms beginners can understand, not the engineering textbook version.

Basic science: photovoltaic effect (simple explanation):

Here’s the simplified version that’s actually accurate:

Photovoltaic effect: Light (photons) hits certain materials and knocks electrons loose, creating electric current

How it works in solar panels:

1. Sunlight hits silicon cell → photons (light particles) carry energy
2. Photons knock electrons loose → silicon atoms have electrons that can be freed by light energy
3. Electrons flow in one direction → panel design creates electric field that pushes freed electrons one direction
4. Flow of electrons = electric current → moving electrons is literally what electricity is!

The magic: As long as light hits the panel, electrons keep flowing. No moving parts, no fuel burned, just light creating electricity.

Sunlight hits silicon cells, creates DC electricity:

Let me be more specific about what happens:

Panel construction layers:

• Glass top (protects cells, lets light through)
• Silicon cells (where magic happens)
• Metal contacts (collect electrons)
• Backing material (structural support)
• Junction box (where wires connect)

Inside silicon cell:

• Two layers of silicon (N-type and P-type)
• Junction between layers creates electric field
• Sunlight frees electrons near junction
• Electric field pushes electrons one direction
• Metal contacts collect flowing electrons
• Result: DC electricity flows out of panel

Panel construction: cells, glass, frame, junction box:

Let me show you actual panel anatomy:

Front surface:

• Tempered glass (3-4mm thick)
• Anti-reflective coating (captures more light)
• Protects cells from weather

Solar cells:

• 60 or 72 cells typical per panel
• Each cell ~6″×6″
• Connected in series (voltages add up)
• Monocrystalline: uniform dark blue/black color
• Polycrystalline: blue with visible grain patterns

Backing:

• Polymer backing sheet
• Protects from moisture
• Structural support

Frame:

• Aluminum frame (corrosion-resistant)
• Mounting holes for racking
• Protects edges

Junction box:

• Mounted on back of panel
• Contains bypass diodes (prevent hot spots from shading)
• MC4 connectors for wiring
• Output: + and – wires

How panels are rated (watts, volts, amps):

Every panel has a nameplate with key specs:

My 400W panel specs:

• Pmax: 400W (maximum power output)
• Vmp: 40.6V (voltage at maximum power)
• Imp: 9.85A (current at maximum power)
• Voc: 49.5V (open circuit voltage—no load connected)
• Isc: 10.35A (short circuit current—wires shorted together)

What this means:

• Under ideal test conditions (25°C, 1000W/m² sun)
• Panel produces 400W maximum
• At 40.6V and 9.85A (watts = volts × amps: 40.6 × 9.85 ≈ 400W)

Real-world output:

• Rarely hits 400W (needs perfect conditions)
• Typically produces 300-380W in good sun
• Temperature, angle, clouds all reduce output

400W panel example breakdown:

Let me show you real performance data from my panels:

Perfect sunny day (June):

• 9am: 150W per panel (low sun angle)
• 12pm: 380W per panel (peak sun, panel heating up)
• 3pm: 350W per panel (good sun, panels hot)
• 6pm: 100W per panel (low sun angle)

Overcast day:

• All day: 30-80W per panel (10-20% of sunny day)

Why never quite 400W:

• Panels heat up (efficiency drops)
• Not perfectly perpendicular to sun
• Atmosphere filters some light
• Dust on surface
• Age degradation (loses ~0.5% per year)

Monocrystalline vs polycrystalline vs thin-film:

Three main types of panels:

Monocrystalline (what I have):

• Single crystal silicon
• Uniform dark color
• Highest efficiency (18-22%)
• More expensive ($0.70-1.00 per watt)
• Best space efficiency
• Recommended for most people

Polycrystalline:

• Multi-crystal silicon
• Blue color with visible crystals
• Lower efficiency (15-17%)
• Cheaper ($0.50-0.80 per watt)
• Require more space for same power
• Decent budget option

Thin-film:

• Amorphous silicon or other materials
• Flexible, lightweight
• Lowest efficiency (10-13%)
• Cheapest per panel
• Need lots of space
• Not recommended for home systems

My choice: Monocrystalline—worth the slight premium for better efficiency and space savings.

Panel efficiency (15-22% typical):

Efficiency = what percentage of sunlight energy gets converted to electricity

Efficiency levels:

• Budget panels: 15-17%
• Standard panels: 17-19%
• Premium panels: 19-22%
• Lab records: >26% (not commercially available)

What this means practically:

1000W/m² sunlight hits panel

• 18% efficient panel: converts 180W
• 22% efficient panel: converts 220W

Higher efficiency = more power per square foot, not necessarily more power per dollar!

Cost comparison:

• 18% panel (350W): $280 → $0.80/watt
• 22% panel (420W): $400 → $0.95/watt

Higher efficiency costs more per watt but uses less space. Worth it if space-limited (roof mount). Less important if space isn’t issue (ground mount).

Why more expensive panels aren’t always better:

Let me compare two real panels:

Budget panel:

• 360W monocrystalline
• 18.5% efficiency
• Cost: $250
• Cost per watt: $0.69

Premium panel:

• 420W monocrystalline
• 21.5% efficiency
• Cost: $420
• Cost per watt: $1.00

For same 7,200W array:

Budget panels:

• Need: 20 panels
• Cost: $5,000
• Space: 340 sq ft

Premium panels:

• Need: 17 panels
• Cost: $7,140
• Space: 289 sq ft

Difference: Premium costs $2,140 more to save 51 sq ft of space.

When premium worth it: Roof mount with limited space When budget better: Ground mount with plenty of space

I bought mid-range 400W panels at $260 each ($0.65/watt)—good balance.

Temperature effects (panels hate heat!):

This surprises people: solar panels produce LESS power when hot!

Temperature coefficient: Typically -0.35% to -0.45% per °C above 25°C

Example on hot day:

• Panel rated 400W at 25°C (77°F)
• Panel surface temp in summer sun: 65°C (149°F)
• Temperature rise: 40°C above rating
• Power loss: 40°C × 0.40% = 16%
• Actual output: 336W instead of 400W

This is why:

• Morning production can be great (cool panels)
• Mid-day production lower than expected (hot panels)
• Cooler climates sometimes better than super hot climates

Good news: Cold weather increases output slightly! Winter panels can exceed rated output if sun is good.

Lifespan: 25-30 years typical, 80% output after 25 years:

Solar panels degrade slowly but predictably:

Standard warranty:

• 25 years performance warranty
• Guaranteed 80% output after 25 years
• Linear degradation (not sudden failure)

Typical degradation:

• Year 1: ~2% (rapid initial degradation)
• Years 2-25: ~0.5% per year
• After 25 years: still producing ~80% of original

My panels:

• Warranty: 87% at 10 years, 80% at 25 years
• Expected lifespan: 30-35 years total
• Still producing meaningful power after 30 years

Actual failure: Panels rarely “die”—they just gradually produce less over decades. After 30 years producing 70-75% of original, they’re still useful!

My panels: 400W monocrystalline, what I learned:

Specs:

• Brand: Canadian Solar (mid-tier quality)
• Model: CS3W-400MS
• Power: 400W
• Efficiency: 20.5%
• Warranty: 25 years
• Cost: $260 each × 20 = $5,200

Real-world performance:

• Peak output: 375-380W in perfect conditions
• Typical summer mid-day: 350-370W per panel
• Total array max output: ~7.4 kW (not full 8 kW)
• Annual production: ~14,600 kWh

What I learned:

Lesson 1: Rated wattage is best-case—expect 90-95% in real conditions

Lesson 2: Panel placement matters hugely—my ground-mount lets me optimize angle seasonally

Lesson 3: Cleaning makes 8-10% difference—dirty panels produce noticeably less

Lesson 4: Shading is killer—even small shadow from tree branch can reduce output 20-30%

Lesson 5: Quality matters but doesn’t need to be premium—mid-tier panels work great

Would I buy same panels again? Yes. Good balance of cost, efficiency, and quality. No failures after 2+ years.

Solar panels are the simplest component to understand—they just sit there converting light to electricity with no moving parts. But understanding their real-world performance versus rated specs, how temperature affects them, and why you need more panels than simple calculations suggest is critical to building a system that actually works!

Battery Banks: Storing Solar Energy

Batteries are the heart of any off-grid system and usually the most expensive component. They’re also the most misunderstood. Let me explain what batteries actually do, how they work, and why choosing the right battery technology is critical.

Why batteries are essential for off-grid:

This seems obvious but let me state it clearly:

The sun only shines during daylight hours

• Panels produce power: ~6-8 hours per day (peak production)
• You need power: 24 hours per day
• Gap between production and need: batteries fill this gap

Without batteries:

• Lights work during day only
• Refrigerator runs during day, spoils food at night
• No TV, computer, or anything at night
• Completely impractical for modern living

With batteries:

• Excess solar charges batteries during day
• Batteries power house at night
• Seamless 24/7 power
• You don’t even notice when sun sets

Sun only shines during day, need power at night:

Let me show you typical daily energy flow:

My daily pattern:

Sunrise to 9am:

• Panels: starting production (200-600W per panel)
• House: ~800W load (fridge, freezer, a few lights)
• Batteries: still discharging, providing most power

9am to 4pm:

• Panels: peak production (6-7.5 kW total)
• House: ~1200W average load
• Batteries: charging with 5-6 kW surplus

4pm to sunset:

• Panels: declining (2-4 kW)
• House: increasing load (1500W – cooking, evening activities)
• Batteries: light charging, transitioning to discharge

Sunset to sunrise:

• Panels: zero production
• House: 600-1000W average load
• Batteries: providing all power (8-12 kWh overnight)

How batteries work (very basic chemistry):

You don’t need to understand electrochemistry, but basic concept helps:

Charging (electrical to chemical energy):

1. DC electricity flows into battery
2. Chemical reaction occurs in battery cells
3. Electrical energy stored as chemical potential
4. Battery “full” when chemistry saturated

Discharging (chemical to electrical energy):

1. Load connected to battery
2. Reverse chemical reaction occurs
3. Chemical potential releases as electrical energy
4. Battery “empty” when chemistry depleted

Think of it like: Charging = compressing a spring (storing potential energy). Discharging = releasing spring (energy does work).

Battery capacity: kWh explained:

Battery capacity measured in kilowatt-hours (kWh)—same unit as daily consumption:

kWh = kilowatt-hours

• How much energy stored
• Example: 10 kWh battery can provide:
  • 1000W for 10 hours, OR
  • 2000W for 5 hours, OR
  • 500W for 20 hours

My battery bank:

• Total capacity: 34.5 kWh
• Usable capacity: 27.6 kWh (80% depth of discharge)
• Provides: ~27.6 kWh before needing recharge

How this relates to consumption:

• My nightly use: 8-12 kWh
• Battery can provide: 2-3 nights without recharging
• In reality: recharges daily from solar

Depth of discharge: can’t use 100% of battery:

Critical concept beginners miss:

You can’t discharge batteries completely without damage

Different chemistries have different limits:

Lithium (LiFePO4):

• Safe depth of discharge (DOD): 80-90%
• Optimal DOD: 70-80%
• Can occasionally go deeper (90-95%) without major damage
• Manufacturer warranty usually requires staying above 10-20% SOC

Lead-acid:

• Safe DOD: 50% maximum
• Optimal DOD: 30-40%
• Going below 50% causes permanent damage
• Below 50% dramatically shortens lifespan

Example with 30 kWh battery:

Lithium (80% DOD):

• Total capacity: 30 kWh
• Usable capacity: 24 kWh
• Reserved: 6 kWh (can’t use)

Lead-acid (50% DOD):

• Total capacity: 30 kWh
• Usable capacity: 15 kWh
• Reserved: 15 kWh (can’t use)

This means: To get 24 kWh usable capacity, you need:

• Lithium: 30 kWh total ($12,000)
• Lead-acid: 48 kWh total ($9,600)

Lead-acid looks cheaper initially but you need 60% more capacity!

Lithium vs lead-acid comparison:

This is the biggest decision for battery choice. Let me compare honestly:

Lithium (LiFePO4) – what I have:

Advantages:

• 80-90% usable capacity (vs 50% for lead-acid)
• 3000-5000+ cycle lifespan (vs 500-1500 for lead-acid)
• Fast charging (can handle full solar input)
• Lightweight (60% lighter than lead-acid)
• No maintenance required
• No gassing or ventilation needed
• 10-15 year lifespan typical
• Better performance in cold weather
• Can be mounted anywhere (no acid spill risk)

Disadvantages:

• Expensive upfront ($400-600 per kWh)
• Requires BMS (battery management system)
• Sensitive to extreme temperatures
• More complex to configure

My lithium cost:

• 34.5 kWh total capacity
• $16,800 including BMS
• $487 per kWh

Lead-acid:

Advantages:

• Cheap upfront ($150-250 per kWh)
• Simple technology (been around 100+ years)
• Proven and understood
• Works in extreme temperatures
• Easily recyclable

Disadvantages:

• Only 50% usable capacity (must buy 2× capacity)
• 500-1500 cycle lifespan (short!)
• Slow charging (can’t handle full solar on cloudy days)
• Heavy and bulky
• Requires regular maintenance (flooded type)
• Requires ventilation (produces hydrogen gas)
• 3-7 year lifespan typical
• Sulfuric acid is dangerous
• Performance degrades quickly in heat

Lead-acid cost for equivalent usable capacity:

• Need 69 kWh total (for 34.5 kWh usable at 50% DOD)
• $13,800 at $200/kWh
• Seems cheaper but…
• Need replacement every 5-7 years
• Over 15 years: $27,600-41,400 (2-3 replacements)

Long-term cost comparison:

Lithium over 15 years:

• Initial: $16,800
• Replacement: $0 (should last 15+ years)
• Maintenance: $0
• Total: $16,800
• Cost per year: $1,120

Lead-acid over 15 years:

• Initial: $13,800
• Replacement 1 (year 6): $13,800
• Replacement 2 (year 12): $13,800
• Maintenance: $300/year × 15 = $4,500
• Total: $45,900
• Cost per year: $3,060

Lithium is 63% cheaper long-term!

LiFePO4 (lithium iron phosphate): best for solar:

Several lithium chemistries exist. For solar, LiFePO4 is best:

LiFePO4 vs other lithium chemistries:

LiFePO4 (what I use):

• Safest lithium chemistry
• No thermal runaway risk
• 3000-5000+ cycles
• Great for solar applications
• Slightly lower energy density

NMC (phones, EVs):

• Higher energy density
• Thermal runaway risk
• Not ideal for stationary solar
• More expensive

LiPo (drones, RC):

• Very high energy density
• Dangerous if mishandled
• Not suitable for solar

For solar applications: LiFePO4 is the clear choice

• Safety
• Longevity
• Cost-effectiveness
• Proven track record

Battery bank sizing basics:

How much battery capacity do you need?

Formula: Battery capacity (kWh) = Daily consumption (kWh) × Days autonomy ÷ Depth of discharge

Example:

• Daily consumption: 20 kWh
• Desired autonomy: 2 days
• Battery type: Lithium (80% DOD)

Calculation: 20 × 2 ÷ 0.80 = 50 kWh total battery capacity

Days of autonomy concept:

Autonomy = how many days batteries can power home without solar input

Factors affecting autonomy needs:

Climate:

• Sunny (Southwest): 1-2 days adequate
• Mixed (Southeast): 2-3 days recommended
• Cloudy (Northwest): 3-5 days essential

Risk tolerance:

• Have backup generator: 1-2 days okay
• No backup: 3-5 days minimum

Budget:

• Batteries expensive ($400-600/kWh for lithium)
• Each day of autonomy costs thousands

My choice:

• 2 days full autonomy (27.6 kWh usable ÷ 18 kWh/day = 1.5 days)
• 3 days if I reduce to essential loads only (10 kWh/day)
• Plus backup generator for extended cloudy periods

Voltage: 12V vs 24V vs 48V systems:

System voltage is fundamental design decision:

12V systems:

• Small systems only (<1500W)
• RVs, boats, tiny cabins
• Advantage: simpler, cheaper components
• Disadvantage: high current (thick expensive wires)
• Example: 1200W load at 12V = 100A current!

24V systems:

• Medium systems (1500-3000W)
• Small homes, cabins
• Better than 12V but still high current
• Example: 2400W load at 24V = 100A current

48V systems (what I have):

• Large systems (3000W+) – RECOMMENDED
• Most residential off-grid
• Advantage: lower current = thinner cheaper wire
• Example: 4800W load at 48V = 100A current
• Professional systems almost always 48V

Why 48V is better:

Same power, different current requirements:

6000W load example:

• 12V system: 500A (massive wire needed!)
• 24V system: 250A (still very large wire)
• 48V system: 125A (manageable wire size)

Wire size comparison for 10 feet from battery to inverter:

• 12V: Need 4/0 AWG or larger (huge, expensive)
• 24V: Need 2/0 AWG
• 48V: Need 4/0 AWG (but handling 4× the power of 12V system)

Higher voltage = lower current = smaller/cheaper wire = less loss

My 48V battery bank:

Configuration:

• Voltage: 48V nominal (51.2V actual for lithium)
• Capacity: 720Ah
• Total energy: 48V × 720Ah = 34,560 Wh = 34.5 kWh

Physical construction:

• 16 cells in series (16 × 3.2V = 51.2V)
• 2 parallel strings for capacity
• Each cell: 3.2V, 360Ah
• Total cells: 32 cells

Why I chose 48V:

• 10,000W inverter requires 48V minimum
• Lower current means safer, cheaper wiring
• Industry standard for residential off-grid
• Easier to expand later
• Better efficiency

Why I chose lithium over lead-acid:

This was expensive decision but absolutely right:

My reasoning:

Cost analysis:

• Lithium upfront: $16,800
• Lead-acid upfront: ~$11,000 (for equivalent usable)
• Lead-acid replacement every 6 years: $11,000
• 15-year lithium cost: $16,800
• 15-year lead-acid cost: $33,000+

Practical benefits:

• Zero maintenance (I’m lazy)
• Indoor installation (no ventilation needed)
• Lightweight (installed myself without help)
• Fast charging (accepts full 8 kW solar input)
• No performance degradation in Texas heat

Performance:

• Can use 80% of capacity (vs 50% for lead-acid)
• Means I need fewer kWh total
• More power available in emergencies

Safety:

• No sulfuric acid
• No hydrogen gas
• Can’t spill or leak
• Safer with kids around

Lifespan:

• Expected: 12-15 years minimum
• Warranty: 10 years
• Will likely outlast other components

My verdict: Lithium costs more upfront but saves money long-term, performs better, requires zero maintenance, and lasts 2-3× longer. Absolutely worth the premium for anyone planning to live off-grid long-term.

Would I choose lead-acid? Only if:

• Extremely budget-limited ($15k total system)
• Temporary setup (moving in 3-5 years)
• Very small system (under 5 kWh batteries)

For my permanent off-grid home, lithium was the clear choice despite the upfront cost.

Batteries are the most critical component to get right—they’re expensive, difficult to change later, and affect your entire system design. Spend the time and money to get quality batteries appropriate for your needs. It’s the component you’ll interact with most (checking state of charge daily) and the one that most affects system performance.

---

Charge Controllers: The Brain of Your System

Charge controllers are the unsung hero of solar systems—most beginners don’t understand what they do or why they’re essential. Let me explain this critical component that sits between your panels and batteries.

What charge controllers do (regulate panel output):

Simple explanation:

Charge controllers manage the flow of power from solar panels to batteries, ensuring batteries charge safely and efficiently.

Three main jobs:

1. Prevent overcharging – stops charging when batteries full
2. Optimize panel output – extracts maximum power from panels
3. Prevent reverse current – stops batteries from draining back through panels at night

Without a charge controller, you’d fry your batteries or waste most of your solar production.

Why you can’t connect panels directly to batteries:

Beginners think: “Panels make DC, batteries store DC, just connect them!”

Why this fails:

Problem 1: Voltage mismatch

• Panel voltage varies: 30-50V depending on sun/temp
• Battery needs specific voltage: 51.2V for my 48V bank
• Direct connection = wrong voltage = damaged batteries

Problem 2: No regulation

• Sunny day: panels push too much current = overcharge
• Batteries overcharged = damaged, fire risk, explosion risk
• No way to stop charging when full

Problem 3: Inefficiency

• Panels have optimal voltage for maximum power
• Directly connected to battery = forced to battery voltage
• Lose 20-40% of potential power

Problem 4: Reverse current

• Night time: panels are just resistive load
• Batteries try to power panels (useless)
• Batteries drain slowly overnight

My experience: I’ve seen someone try direct connection. Their expensive batteries were ruined in 3 months.

PWM vs MPPT controllers:

Two technologies exist. One is much better:

PWM (Pulse Width Modulation) – budget option:

How it works:

• Rapidly switches connection on/off
• Matches panel voltage to battery voltage
• Simple and cheap

Disadvantages:

• Forces panel to operate at battery voltage
• Not optimal for panel performance
• Wastes 20-30% of available power
• Only works if panel and battery voltage close

Cost: $100-300

When acceptable:

• Very small systems (RV, boat)
• Panel voltage = battery voltage
• Budget extremely limited

MPPT (Maximum Power Point Tracking) – what you want:

How it works:

• Continuously adjusts to find panel’s maximum power point
• Converts excess voltage to additional current
• Like having a smart transformer that optimizes everything
• Operates panel at ideal voltage regardless of battery voltage

Advantages:

• Extracts 20-30% more power vs PWM
• Works with any panel/battery voltage combination
• Worth the premium in increased production

Cost: $400-2000+

When essential:

• Any system over 1000W
• When panel voltage ≠ battery voltage
• When you want maximum efficiency
• Professional installations (always MPPT)

MPPT explained: Maximum Power Point Tracking:

Let me explain this since it’s confusing:

Solar panels have a “sweet spot” voltage where they produce maximum power

Example with my 400W panel:

• Voltage range: 0-50V (varies with load)
• At 30V: panel produces 8A = 240W
• At 40.6V: panel produces 9.85A = 400W ← maximum power point!
• At 50V: panel produces 8A = 400W

Without MPPT (PWM controller):

• Battery voltage: 51-58V (48V system)
• Panel forced to 52V to match battery
• Panel produces: ~7.7A × 52V = 400W
• But voltage too high for optimal panel performance
• Actual: ~320W (20% loss!)

With MPPT controller:

• Controller operates panel at 40.6V (optimal)
• Panel produces: 9.85A × 40.6V = 400W
• Controller converts to battery voltage (52V)
• Output to battery: 7.7A × 52V = 400W
• No loss! Full 400W delivered

The magic: MPPT controller acts like automatic transmission—always finds best gear for conditions.

Real-world gain: I measure 25-30% more production with MPPT vs what PWM would give.

How to size charge controller (amps and voltage):

Charge controllers rated by:

1. Maximum input voltage (from panels)
2. Maximum charging current (to batteries)

My controller: Victron SmartSolar 250/100 MPPT

• 250 = max 250V from panels
• 100 = max 100A to batteries

Sizing for voltage:

Calculate maximum panel voltage:

• My panels: Voc (open circuit) = 49.5V each
• In series: voltage adds up
• Cold morning voltage higher: 49.5V × 1.15 = 57V per panel

My configuration:

• 2 strings of 10 panels each
• Each string: 10 × 57V = 570V maximum

Problem! This exceeds 250V controller limit!

Solution:

• Reconfigure: 4 strings of 5 panels each
• Each string: 5 × 57V = 285V

Still over 250V limit!

Final solution:

• Two controllers! Each handles 2 strings
• Each string max voltage: 285V
• Need 300V rated controllers to be safe
• I use one 250V controller with strings sized to stay under limit

Sizing for current:

Calculate maximum charging current:

My array: 8000W maximum My battery: 48V

Simple formula: Amps = Watts ÷ Volts 8000W ÷ 48V = 167A potential charging current

My controller: Rated 100A maximum

Wait, that’s not enough!

Reality: Panels rarely produce full rated output simultaneously

• Panel derating: 90-95% typical
• System losses: 5%
• Actual max current: ~140A

But 140A > 100A controller rating!

Solution: I actually use two controllers

• Controller 1: handles 10 panels (70A max)
• Controller 2: handles 10 panels (70A max)
• Total: 140A charging capacity

Alternative: Buy larger single controller (150A or 200A rating)

• Cost: $1500-2500
• vs two 100A controllers: $850 × 2 = $1700

Multiple controllers for larger arrays:

Benefits of multiple smaller controllers:

Redundancy:

• If one controller fails, other keeps working
• Don’t lose 100% of production

Flexibility:

• Can point panels different directions
• Each controller optimizes its panels independently

Panel configuration:

• Easier to wire multiple smaller strings
• vs few large strings at high voltage

Cost:

• Often cheaper than one huge controller
• More options available

My setup:

• Started with one controller (12 panels)
• Added second controller when expanded to 20 panels
• Each handles 10 panels (5S2P configuration)

Built-in features: display, Bluetooth, programming:

Modern controllers have impressive features:

My Victron SmartSolar features:

Bluetooth connectivity:

• Connects to phone app
• Real-time monitoring
• Historical data graphs
• Configuration from phone

LCD display (on controller):

• Current production (watts)
• Battery voltage
• Charging current
• Daily kWh production
• Fault codes

Programmable settings:

• Battery type (lead-acid, gel, lithium)
• Charging voltage (customize for battery)
• Absorption time
• Float voltage
• Temperature compensation

Data logging:

• Daily production history
• 30-day charts
• Battery voltage trends
• Export data

Load output:

• Can power DC loads directly
• Programmable disconnect (low battery)
• I don’t use this (all loads through inverter)

Temperature sensor:

• Optional temp probe
• Adjusts charging voltage for battery temp
• Improves lifespan and safety

My charge controller: Victron SmartSolar 250/100 MPPT:

Why I chose Victron:

Reputation:

• Industry leader in marine/off-grid
• Excellent reliability
• Great support community

Features:

• Best-in-class MPPT algorithm
• Bluetooth monitoring
• VictronConnect app (excellent)
• Compatible with my inverter (Victron ecosystem)

Performance:

• 98% efficiency rated
• I measure 96-97% actual
• Handles 5800W from my 10 panels

Cost: $850 (worth it for quality)

Monitoring production in real-time:

I check my phone app multiple times daily:

Morning:

• See when production starts (sunrise)
• Current: 200-400W per panel ramping up
• Battery: 60-80% (after overnight discharge)

Mid-day:

• Peak production: 6-7.5 kW total array
• Battery: 100% (full by 11am-2pm depending on season)
• Excess power: going to loads

Evening:

• Production declining
• Battery: 100% (topped off)
• Ready for overnight discharge

Data I track:

• Daily kWh production (avg 40 kWh summer, 30 kWh winter)
• Panel voltage (detect issues)
• Charging current (spot problems)
• Historical trends (year-over-year comparison)

Why quality controllers matter:

I’ve seen cheap controllers fail:

Friend’s cheap PWM controller:

• Bought $89 40A PWM controller
• Failed after 8 months
• Cooked his batteries (no proper regulation)
• Total damage: $2000+ in batteries
• Saved $300 on controller, lost $2000 in batteries

My Victron experience:

• 2+ years, zero issues
• Accurate monitoring
• Proper battery charging
• Worth the $850 investment

Don’t cheap out on charge controller!

• It protects expensive batteries
• Maximizes solar production
• Central to system performance
• Buy quality from reputable brand

Recommended brands:

• Victron (my choice)
• Midnite Solar
• Outback
• Morningstar

Avoid:

• Generic Amazon/eBay brands
• No-name controllers
• Anything suspiciously cheap

The charge controller is your system’s brain—it makes thousands of micro-decisions daily to optimize charging and protect batteries. A quality MPPT controller pays for itself in increased production and battery longevity. Don’t skimp here!

Inverters: Converting DC to AC Power

Inverters are expensive, complex, and absolutely essential. They’re also the component beginners understand least. Let me demystify what inverters do and why they cost so much.

Batteries store DC, house needs AC:

Here’s the fundamental problem inverters solve:

Your batteries: Store DC (direct current) power

• Voltage: 48V DC (in my case)
• Current flows one direction constantly
• Like a battery in a flashlight

Your house: Needs AC (alternating current) power

• Voltage: 120V/240V AC
• Current reverses direction 60 times per second
• Standard household power

The mismatch: Can’t plug household appliances into DC batteries directly. They need AC power.

Inverter’s job: Convert 48V DC from batteries to 120V/240V AC for house

How inverters work (basic concept):

Simplified explanation of the magic:

Step 1: Switch DC on and off rapidly

• Inverter switches battery connection on/off thousands of times per second
• Creates pulsed DC

Step 2: Create alternating pattern

• Switches polarity (+ and -) 60 times per second
• Creates crude AC waveform

Step 3: Smooth the waveform

• Filters and shapes pulses into smooth sine wave
• Output looks like utility power

Step 4: Transform to proper voltage

• Transformer steps 48V up to 120V/240V
• Final output: clean AC power

The complexity: Creating clean, stable AC from DC requires sophisticated electronics, precise timing, and quality components—hence the cost!

Pure sine wave vs modified sine wave:

Two types of AC waveforms inverters can produce:

Pure sine wave (what you need):

• Smooth, rounded wave (like utility power)
• Exact replica of grid power
• Works with all appliances
• Essential for:
  • Electronics (computers, TVs)
  • Variable speed tools
  • Medical equipment
  • Microwaves, audio equipment
  • Anything with a motor

Modified sine wave (avoid!):

• Blocky, stepped approximation
• Cheaper to produce
• Problems with:
  • Motors run hot, inefficient, noisy
  • Electronics may malfunction
  • Microwaves cook unevenly
  • Clocks run wrong speed
  • Buzzing in audio equipment

Cost difference:

• Modified sine: $200-600
• Pure sine: $800-8000+

My advice: Only buy pure sine wave inverters. Modified sine wave causes more problems than the money saved.

Why pure sine wave essential for modern electronics:

Real-world problems with modified sine wave:

Laptop power supplies:

• May overheat
• Premature failure
• Strange noises

LED TVs:

• Image flickering
• Shortened lifespan
• Won’t work at all (some models)

Refrigerators:

• Compressor runs hot
• Increased power consumption
• Shortened lifespan

Microwaves:

• Cook unevenly
• Take longer
• Magnetron damage over time

Medical equipment:

• CPAP machines: may not work
• Oxygen concentrators: unreliable
• Blood glucose monitors: inaccurate readings

My experience:

• Initially tried modified sine wave (to save money)
• Laptop charger buzzed loudly and got very hot
• LED lights flickered
• Microwave took 2× longer to heat
• Returned it and bought pure sine wave

Don’t make my mistake—buy pure sine wave from the start!

Inverter sizing: continuous watts vs surge watts:

Inverters have two critical ratings:

Continuous watts (primary rating):

• Power inverter can produce continuously
• Example: 5000W continuous
• Can run 5000W load 24/7 without issue

Surge watts (short-term capacity):

• Power inverter can handle for brief periods (seconds)
• Example: 10,000W surge (2× continuous typical)
• Handles motor starting and surge loads

Why both ratings matter:

Continuous watts: Must exceed your typical loads

• My house: 1500-2500W typical load
• Peaks: 4000-5000W (multiple loads simultaneously)
• Inverter: 10,000W continuous (plenty of headroom)

Surge watts: Must exceed starting surge of largest motor

• Well pump: 900W running, 2700W starting (3× surge)
• AC compressor: 1500W running, 4500W starting (3× surge)
• Inverter: 20,000W surge (handles 2 motors starting simultaneously)

Undersized inverter problems:

Scenario 1: Continuous overload

• Running 6000W load on 5000W inverter
• Inverter overheats, shuts down
• No power until inverter cools

Scenario 2: Surge overload

• Well pump tries to start (2700W surge)
• Inverter rated only 2000W surge
• Inverter trips, pump doesn’t start
• Have to reset inverter, try again

My friend’s mistake:

• Bought 3000W inverter (too small)
• Couldn’t start well pump
• Couldn’t run AC + other loads
• Had to upgrade to 8000W inverter
• Wasted $1200 on wrong inverter

How to size inverter:

Step 1: List all loads you might run simultaneously

• Refrigerator: 200W
• Freezer: 180W
• Lights: 150W
• Computer: 250W
• TV: 100W
• Microwave: 1200W
• Well pump: 900W
• Total: 2980W

Step 2: Add 30% safety margin

• 2980W × 1.3 = 3874W continuous needed

Step 3: Check surge requirements

• Well pump: 2700W surge (largest)
• Refrigerator: 600W surge
• Total surge: 3300W if both start simultaneously

Step 4: Choose inverter

• Continuous: 4000W minimum (I’d go 5000W)
• Surge: 8000W+ (2× continuous typical)
• My actual inverter: 10,000W continuous, 20,000W surge

Better to oversize than undersize! Inverter running at 50% capacity will last longer and run cooler than one at 100% constantly.

Why inverters are so expensive ($2,000-8,000+):

People always ask why inverters cost so much:

Quality components:

• High-power MOSFETs (semiconductor switches)
• Large transformers (heavy copper/iron)
• Sophisticated control electronics
• Cooling systems (fans, heat sinks)

Complex electronics:

• Precise timing circuits
• Microprocessor control
• Pure sine wave generation
• Protection circuits

Safety features:

• Overload protection
• Short circuit protection
• Over-temperature shutdown
• Ground fault detection
• Reverse polarity protection

Build quality:

• Designed for 24/7 operation
• 10-20 year lifespan
• Must handle frequent cycling
• Heat dissipation crucial

My inverter cost: $4,200 for 10,000W unit

Cheap inverter comparison:

• Amazon 3000W “pure sine wave”: $300
• Reviews: failures in 6-18 months
• No support, no warranty service
• Creates power quality issues

Quality inverter:

• Victron, Outback, Schneider: $2,000-8,000
• 10+ year lifespan typical
• Excellent support
• Reliable performance

The math:

• Cheap inverter: $300 × 5 replacements over 15 years = $1,500 + hassle
• Quality inverter: $4,000 × 1 over 15 years = $4,000
• Quality costs more but worth it for reliability

Inverter/charger combo units (my recommendation):

Most off-grid inverters include battery charger:

Separate units:

• Inverter: DC to AC
• Charger: AC (from generator) to DC (charges batteries)
• Two separate devices

Combo units (inverter/charger):

• One device does both jobs
• Inverter mode: DC to AC (battery to house)
• Charger mode: AC to DC (generator to batteries)
• Automatic switching

My Victron Quattro:

• 10,000W inverter
• 140A battery charger built-in
• Automatic transfer switch
• Grid/generator input handling

Benefits of combo:

• Less equipment (one unit vs two)
• Seamless switching
• Integrated controls
• Often cheaper than separate units
• Simpler wiring

How it works:

Normal operation (sunny day):

• Solar charges batteries via charge controller
• Inverter converts battery DC to house AC
• Generator off

Generator operation (cloudy week):

• Generator starts (manual or automatic)
• Inverter switches to “charger mode”
• Generator AC power:
  • Powers house directly (bypass inverter)
  • Charges batteries through built-in charger (140A)
• When batteries full, generator stops
• Inverter switches back to “inverter mode”

Grid-tie capability (for hybrid systems):

Many modern inverters can connect to grid:

Grid-tied with battery backup:

• Inverter connects to both grid and batteries
• Normal: grid powers house, solar charges batteries
• Outage: inverter seamlessly switches to batteries
• Zero downtime (seamless transfer)

My inverter (Victron Quattro):

• Has grid input capability
• I don’t use it (no grid available)
• But nice option if ever grid comes to my property

Split-phase for 240V (well pumps, AC, dryer):

North American homes use split-phase 240V:

How it works:

• Two 120V phases, 180° out of phase
• Between either phase and neutral: 120V
• Between both phases: 240V

Why needed:

• Major appliances: well pump, AC, electric dryer
• Require 240V to operate
• More efficient than 120V for high power

Inverter options:

120V only inverter:

• Provides only single-phase 120V
• Cannot run 240V appliances
• Cheaper but limited

Split-phase 240V inverter (what I have):

• Provides both 120V and 240V
• Full house compatibility
• Required for most homes

Two inverters in series:

• Alternative for split-phase
• Two 120V inverters, 180° out of phase
• More complex but flexible

My setup: Single split-phase inverter (simpler)

Efficiency ratings and standby draw:

Inverters aren’t 100% efficient:

Efficiency (under load):

• Quality inverters: 90-95% efficient
• My Victron: 94% rated, 92-93% measured
• Cheap inverters: 80-88% efficient

What this means:

• 1000W load on my inverter
• Battery provides: ~1080W
• Loss: 80W (7-8%)

Standby draw (no load):

• Inverter on but no loads connected
• Still consumes power (control electronics, fans)
• Quality inverters: 15-50W standby
• Cheap inverters: 50-100W+ standby

My inverter: 35W standby (measured)

• Over 24 hours: 0.84 kWh wasted
• Annual: 307 kWh wasted just on standby

This is why: Some people use power switch to turn inverter off when not needed

• I leave mine on 24/7 (worth it for convenience)
• 307 kWh annual cost = about 1% of production

My inverter: Victron Quattro 48/10000/140:

Full specs:

• Model: Quattro 48/10000/140-2×100/100
• Continuous power: 10,000W (10 kW)
• Surge power: 20,000W for 3 seconds
• Input voltage: 48V DC
• Output: 120V/240V split-phase
• Charger: 140A at 48V
• Efficiency: 94% at 25% load, 95% at 50% load
• Standby: 35W
• Weight: 66 lbs (heavy!)

Why I chose Victron:

Reputation:

• Marine industry standard (harsh environment)
• Excellent reliability track record
• Active user community

Features:

• Best-in-class efficiency
• Powerful built-in charger
• VE.Bus communication (talks to charge controllers)
• VRM monitoring (remote monitoring via internet)
• Programmable (customize every parameter)

Support:

• Excellent documentation
• Responsive support
• 5-year warranty

Performance:

• 2+ years, zero issues
• Handles my 10 kW loads easily
• Surge capacity handles well pump + AC simultaneously
• Clean power (no issues with sensitive electronics)

Cost: $4,200

Worth it? Absolutely. Central component of system, needs to be reliable.

When to use multiple inverters:

Sometimes multiple smaller inverters better than one large:

Scenario 1: Very large loads

• Need 20,000W continuous
• Single inverter: expensive, limited options
• Two 10,000W inverters: more available, redundancy

Scenario 2: Efficiency optimization

• Small loads at night (300-500W)
• Large inverter inefficient at light loads
• Solution: Large inverter for day, small for night
• Switch between them based on load

Scenario 3: Redundancy

• Critical loads (medical equipment)
• Backup inverter if primary fails
• Worth the cost for critical applications

My friend’s dual-inverter setup:

• 10,000W primary (daytime loads)
• 2,000W secondary (nighttime loads)
• Automatic switching based on load
• Saves ~200 kWh per year in efficiency

I use single inverter: Simpler, adequate efficiency, one less thing to manage

Inverters are the most complex and expensive single component in most off-grid systems. Understanding continuous vs surge ratings, pure sine wave requirements, and proper sizing is essential. Buy quality from reputable brands—this is not where you want to save $500 and regret it later when loads won’t run or the inverter fails!

---

Backup Generators: Why You Still Need One

Here’s the truth most solar enthusiasts don’t want to admit: you need a backup generator. It’s not giving up on solar—it’s being realistic about weather and system reliability. Let me explain why generators are essential insurance.

Reality check: solar isn’t 100% reliable:

I love my solar system, but let me be honest about limitations:

Solar depends on sun:

• Cloudy weeks reduce production 70-90%
• Winter production can be half of summer
• Weather is unpredictable
• You can’t control the sun

Batteries have limits:

• Finite capacity (my 27.6 kWh usable)
• Can’t expand capacity instantly
• Discharge faster than expected during high usage
• Eventually run out during extended cloudy periods

Equipment can fail:

• Inverters occasionally fault
• Charge controllers can have issues
• Wiring connections loosen
• Batteries have rare failures

My experience:

• 5-day cloudy spell in December
• Batteries drained to 20%
• Solar barely producing
• Generator saved me from dead batteries

Extended cloudy periods happen:

Real weather data from my location:

Typical cloudy spell (happens monthly):

• 2-3 consecutive cloudy/rainy days
• Production: 20-40% of normal
• Batteries handle it fine
• No generator needed

Severe cloudy spell (happens 2-3 times per year):

• 4-7 consecutive cloudy/rainy days
• Production: 10-30% of normal
• Batteries drain significantly
• Generator needed to avoid deep discharge

My worst week (December 2023):

• Day 1: Heavy overcast, 12 kWh production (vs 30 normal)
• Day 2: Rain, 8 kWh production
• Day 3: Rain continues, 7 kWh production
• Day 4: Clouds clearing, 15 kWh production
• Day 5: Partial sun, 22 kWh production

Total 5-day production: 64 kWh Total 5-day consumption: 90 kWh (18/day) Deficit: 26 kWh

Battery response:

• Started: 100% (27.6 kWh)
• Ended day 3: 25% (6.9 kWh remaining)
• Ran generator 4 hours on day 3 to charge back to 60%
• Day 4-5 solar recovered rest

Without generator, batteries would’ve hit 0% on day 4—not good!

Winter production can be half of summer:

My actual monthly production:

Winter isn’t just shorter days—it’s also:

• Lower sun angle (less intense)
• More clouds
• More rain
• Panels cold (actually good!) but still less total sun

Generator provides insurance:

Think of generator like:

• Fire extinguisher (hope you never need it, glad it’s there)
• Spare tire (rarely used, essential when needed)
• Emergency fund (peace of mind)

My generator use over 2 years:

• Year 1: 87 hours
• Year 2: 72 hours
• Average: ~80 hours per year
• Cost: ~$120 in fuel per year

When generators run: cloudy weeks, winter, emergencies:

My generator starts in these situations:

Cloudy weeks (most common):

• 3+ consecutive days <50% production
• Batteries dropping below 30%
• Run generator 3-6 hours to charge batteries to 70-80%
• Frequency: 3-5 times per winter

Winter shortfalls:

• December/January production sometimes barely adequate
• High consumption day + cloudy = need supplement
• Run generator 2-4 hours
• Frequency: 2-4 times per winter

Unexpected high consumption:

• Guests visiting (higher usage)
• Forgot laundry running (battery drain)
• Multiple cloudy days + high use = need help
• Frequency: 1-2 times per year

Equipment failures (rare):

• Inverter fault (happened once)
• Charge controller issue (never, but could happen)
• Generator bypasses failed component temporarily

My annual total: 70-90 hours

• 96% of power from solar
• 4% from generator
• Generator is insurance, not primary power

Sizing backup generator (smaller than primary):

Generator sizing different than if it were primary:

Primary generator (if no solar):

• Need to run whole house
• Size: 7,000-12,000W
• Run 8-12 hours per day
• Thousands of hours per year

Backup generator (with solar):

• Need to charge batteries + essential loads
• Size: 5,000-8,000W adequate
• Run 2-6 hours per session
• Dozens of hours per year

My choice: 7,000W dual-fuel generator

• More than I need (5,000W would work)
• Nice to have extra capacity
• Can run whole house if solar completely failed

Sizing recommendation:

Formula: Battery charger amps × battery voltage + essential loads

My calculation:

• Battery charger: 140A × 48V = 6,720W
• Essential loads during charging: 500-1000W
• Total: 7,720W
• Generator needed: 7,000W+ (I have 7,000W)

Alternative sizing:

• Calculate max charging power needed
• Add 20-30% for inefficiency
• Add essential loads
• Round up to standard generator size

Gas vs propane vs dual-fuel for backup:

Generator fuel choices:

Gasoline:

• Readily available
• High energy density
• But: goes bad in 6-12 months (use stabilizer)
• Storage concerns

Propane:

• Stores indefinitely
• Cleaner burning
• But: less power (10-15% reduction)
• Need propane tank

Dual-fuel (what I have):

• Runs on gasoline OR propane
• Flexibility
• I normally use propane (already have for heat/cooking)
• Keep 5 gallons gas for emergencies

My fuel storage:

• Two 100-lb propane tanks (always kept >50% full)
• 5 gallons gasoline (rotated through car monthly)
• Can run generator ~40 hours on stored fuel

My generator use: 60-90 hours per year:

Let me break down actual usage:

Year 1 (learning curve):

• Total runtime: 87 hours
• January: 15 hours (learning to manage batteries)
• February: 8 hours
• March-October: 12 hours total (sunny seasons)
• November: 18 hours (cloudy weeks)
• December: 34 hours (worst weather)

Year 2 (optimized):

• Total runtime: 72 hours
• Better battery management
• More aggressive load shedding
• January: 22 hours
• February: 8 hours
• March-October: 6 hours
• November: 14 hours
• December: 22 hours

Pattern: 80% of generator use in Nov-Jan (worst solar months)

Cost of backup:

• Generator: $1,250 initial
• Fuel: ~$120/year
• Maintenance: ~$50/year (oil changes)
• Annual cost: $170 + depreciation

Alternative: Double solar/battery to eliminate generator

• Cost: $20,000+ additional
• To save: 70-90 hours generator use
• Payback: never (not economical)

Generator as battery charger:

Primary use: charging batteries when solar insufficient

How it works:

1. Batteries drop to 30% (my threshold for starting generator)
2. Start generator manually (I don’t use auto-start)
3. Generator powers house + charges batteries
   • House loads: 1,000-1,500W
   • Battery charging: 6,000-7,000W (140A × 48V)
   • Total generator load: 7,000-8,000W
4. Inverter/charger automatically manages
   • Inverter switches to “charger mode”
   • Draws max 140A from generator
   • Charges batteries efficiently
5. Run until batteries at 70-80%
   • Typically 3-6 hours depending on starting level
   • Stop generator
   • Inverter switches back to battery power

Efficiency: My inverter/charger is 92% efficient at charging

• Generator produces: 6,700W
• Batteries receive: ~6,200W
• Loss: 500W (8%)

Automatic start options (expensive but nice):

Some systems can automatically start generators:

How it works:

• Inverter monitors battery voltage
• If drops below threshold (e.g., 48V = ~30% SOC)
• Sends start signal to generator
• Generator starts automatically
• Charges batteries
• Shuts down when batteries reach target (55V = ~80% SOC)

Requirements:

• Generator with electric start
• Auto-start controller ($300-800)
• Communication cable
• Inverter with generator start capability

Benefits:

• Fully automated
• Don’t have to monitor constantly
• Prevents deep battery discharge
• Peace of mind when away from home

Downsides:

• Expensive ($500-1,200 additional)
• More complexity
• Generator must be reliable (can’t fail to start)
• Uses more fuel (starts more frequently with lower threshold)

My choice: Manual start

• I monitor batteries daily anyway
• Save $800 on auto-start
• Like having control
• Rarely away from home for extended periods

But if I traveled frequently: Would definitely install auto-start

Why off-grid purists still usually have generators:

Even the most dedicated off-grid enthusiasts keep generators:

Case study 1: Off-grid 20 years

• 40-panel array (16 kW)
• 80 kWh battery bank
• Still has 8 kW generator
• Uses it 20-40 hours per year
• “Insurance is worth the fuel cost”

Case study 2: Off-grid extremist

• Tried to eliminate generator completely
• Built massive 60-panel array
• 120 kWh battery bank
• Cost: $85,000
• Result: Still needed generator once (inverter failure)
• Bought generator “for emergencies only”

Case study 3: YouTube off-grid guy

• Claims “100% solar, no generator”
• Actually has generator (shows in background of videos)
• Uses it “just for workshops” (sure…)
• Misleading marketing

Reality: Experienced off-gridders are practical

• Generator is cheap insurance
• Solar is primary (90-99% of power)
• Generator is backup (1-10% of power)
• Together they’re bulletproof system

My philosophy:

• Solar provides daily power (96% of annual kWh)
• Batteries smooth out day/night cycle
• Generator covers worst-case scenarios (4% of annual kWh)
• Total system reliability: ~99.9% uptime

Alternative to generator: Massive oversizing

• Could build 40-panel array instead of 20
• Could double battery bank
• Cost: $30,000+ additional
• Would reduce generator to <10 hours per year
• Not economically justified

Better approach:

• Right-size solar for typical conditions
• Add generator as backup
• Save $20,000-30,000
• Accept 60-90 hours generator use per year
• More practical and reliable

Don’t fall for the myth that off-grid means zero backup. Smart off-gridders use generators as insurance—not failure, just realistic system design. A $1,000 generator saves you $20,000+ in solar/battery oversizing while providing better reliability. That’s not cheating, it’s intelligent design!

How Energy Flows Through Your System

Understanding energy flow is crucial for beginners—it helps you grasp how all five components work together. Let me walk you through a complete 24-hour cycle showing where power goes at each moment.

Step-by-step energy flow walkthrough:

I’ll trace a single watt of energy from sunlight to your light bulb:

Step 1: Sunlight to electricity

• Photon from sun hits silicon cell in panel
• Knocks electron loose
• Electron flows through panel circuit
• Result: DC electricity at ~40V

Step 2: Panel to charge controller

• 20 panels connected in strings
• Wires carry DC power to charge controller
• Voltage: varies 30-50V depending on sun
• Current: varies 0-200A total depending on sun
• Power arriving at controller: 0-8000W

Step 3: Charge controller optimization

• MPPT algorithm finds optimal panel voltage
• Extracts maximum available power
• Converts panel voltage to battery voltage
• Output: optimized DC at battery voltage (~52V)

Step 4: Controller to batteries

• DC power flows into battery bank
• Chemical reaction stores energy
• Batteries charge (if below 100%)
• OR power flows through batteries to inverter (if batteries full)

Step 5: Batteries to inverter

• Inverter pulls DC power from batteries
• Voltage: 48V DC (my system)
• Current: varies with house load (0-200A)
• Power: varies 0-10,000W

Step 6: Inverter converts to AC

• Sophisticated electronics switch DC on/off rapidly
• Creates smooth AC sine wave
• Transforms to 120V/240V
• Output: clean AC power for house

Step 7: House distribution

• AC flows through main panel
• Branch circuits distribute to outlets
• Powers refrigerator, lights, computer, etc.
• Energy consumed by appliances

Total journey: Sun → panels → controller → batteries → inverter → appliances Time: Milliseconds for electricity flow Efficiency: ~72% overall (28% lost to various inefficiencies)

Morning: batteries power house, sun comes up:

Let me describe a typical morning (6am-9am):

6:00am – Sunrise

• Batteries: 65% (discharged overnight from 100%)
• Solar panels: producing 0W (sun just rising)
• House load: 600W (fridge, freezer, a few lights)
• Power source: 100% batteries

6:30am – Early light

• Batteries: 62%
• Solar panels: 400W total (low sun angle, cold panels)
• House load: 800W (coffee maker added)
• Battery discharge: 400W (800W load – 400W solar)
• Power source: 50% solar, 50% batteries

7:00am – Sun rising

• Batteries: 60%
• Solar panels: 1,200W total (increasing rapidly)
• House load: 900W (normal morning usage)
• Battery charge: 300W (1200W solar – 900W load)
• Power source: 100% solar + charging batteries

8:00am – Good sun

• Batteries: 63% (charging)
• Solar panels: 3,500W total
• House load: 1,200W (shower, lights, devices)
• Battery charge: 2,300W surplus
• Power source: 100% solar, batteries charging

9:00am – Peak ramping

• Batteries: 70% (charging fast)
• Solar panels: 5,800W total
• House load: 1,000W
• Battery charge: 4,800W surplus
• Power source: 100% solar, batteries charging rapidly

Panels generate DC electricity:

During morning ramp-up:

Each panel performance:

• 6:00am: 0W (dark)
• 6:30am: 20W each (very low angle)
• 7:00am: 60W each (sun hitting panels)
• 7:30am: 140W each
• 8:00am: 220W each
• 8:30am: 290W each
• 9:00am: 340W each (approaching peak)

Total array (20 panels):

• 9:00am: 6,800W total
• Still ramping toward peak
• Will hit 7,400W maximum around 11am-1pm

Charge controller optimizes panel output:

What controller does during ramp-up:

Early morning (low light):

• Panel voltage: 44V (cold panels)
• Controller finds optimal point
• Extracts 60W per panel (limited by light)

Mid-morning (increasing sun):

• Panel voltage: 42V (warming up)
• Controller continuously adjusts
• Extracting 290W per panel
• Without MPPT: would only get ~220W (25% loss!)

This is why MPPT worth it: Constantly optimizing as conditions change

Power flows to batteries (charging) AND loads (if needed):

The controller/inverter system intelligently manages power:

Scenario 1: Production > Consumption (typical day)

• Panels producing: 6,000W
• House using: 1,200W
• Surplus: 4,800W goes to charging batteries

Scenario 2: Production < Consumption (cloudy or evening)

• Panels producing: 800W
• House using: 1,500W
• Deficit: 700W from batteries to make up difference

Scenario 3: Production >> Consumption + batteries full

• Panels producing: 7,500W
• House using: 1,000W
• Batteries: 100% (can’t accept more)
• Waste: 6,500W excess (panels throttle back)

This is why summer sees “wasted” production—batteries full by 11am, surplus has nowhere to go.

Inverter converts DC to AC for house:

Meanwhile, inverter is constantly working:

House load: 1,200W at 9am

Inverter operation:

• Draws from batteries: 1,200W ÷ 0.93 efficiency = 1,290W DC
• Converts 48V DC to 120V/240V AC
• Outputs: clean 60Hz sine wave
• Powers: refrigerator, lights, coffee maker, computer

Frequency: Inverter running 24/7 (never shuts off) Load varies: 600-5,000W depending on time and appliances

Afternoon: peak production, batteries fully charged:

Mid-day scenario (11am-3pm):

12:00pm – Peak production

• Batteries: 100% (fully charged by 11:30am)
• Solar panels: 7,400W (peak output)
• House load: 1,500W (normal daytime)
• Surplus: 5,900W (nowhere to go, panels throttling)

This is “waste” I mentioned:

• Could use for AC (summer)
• Could run clothes dryer
• Could charge power tools
• Could heat water
• Or just accept some waste (batteries are full!)

Panel response when batteries full:

• Charge controller reduces output
• Panels “throttle back” to match consumption
• Only producing what house needs
• This is normal and okay!

1:00pm – Still peak

• Batteries: 100%
• Solar panels: 7,200W available (slight decrease from peak)
• House load: 2,000W (maybe laundry running)
• Actual production: 2,000W (rest throttled)
• Surplus: batteries full, only producing what’s used

3:00pm – Declining but strong

• Batteries: 100%
• Solar panels: 6,000W available
• House load: 1,200W
• Actual production: 1,200W
• Surplus: still throttled, batteries remain full

Evening: production decreases, batteries help power house:

Late afternoon / evening transition (4pm-7pm):

4:00pm – Declining sun

• Batteries: 100%
• Solar panels: 4,500W
• House load: 1,800W (cooking dinner)
• Battery status: 2,700W surplus, still charging (unnecessary but keeps battery topped)
• Power source: 100% solar

5:00pm – Low sun

• Batteries: 100%
• Solar panels: 2,800W
• House load: 2,200W (cooking, TV, lights)
• Battery status: 600W surplus
• Power source: 100% solar, batteries barely charging

6:00pm – Near sunset

• Batteries: 100%
• Solar panels: 1,200W
• House load: 2,500W (peak evening usage)
• Battery discharge: 1,300W
• Power source: 48% solar, 52% batteries (starting transition)

7:00pm – Sunset

• Batteries: 98%
• Solar panels: 200W (very low angle)
• House load: 1,800W
• Battery discharge: 1,600W
• Power source: 11% solar, 89% batteries

7:30pm – Dark

• Batteries: 96%
• Solar panels: 0W (sun has set)
• House load: 1,500W
• Battery discharge: 1,500W
• Power source: 100% batteries

Night: batteries provide all power:

Overnight operation (8pm-6am):

Evening (8pm-11pm):

• High usage: TV, computers, lights, cooking
• Average load: 1,200W
• Battery discharge: 3.6 kWh over 3 hours
• Batteries: 96% → 83%

Late night (11pm-6am):

• Low usage: fridge, freezer, few lights
• Average load: 650W
• Battery discharge: 4.5 kWh over 7 hours
• Batteries: 83% → 67%

Total overnight:

• Time: 10 hours (8pm-6am)
• Energy consumed: 8.1 kWh
• Battery level: 100% → 67%
• Remaining: 18.5 kWh (adequate for another full night if needed)

This is why battery capacity matters: Need enough to get through night comfortably with margin for cloudy next day.

Cloudy day: batteries discharge, may need generator:

Let me show you a challenging cloudy day:

Day 1 – Heavy overcast

Morning:

• Started batteries: 68% (from previous night)
• Solar production all day: 12 kWh (vs 40 kWh normal)
• Consumption all day: 18 kWh
• Net: -6 kWh (batteries providing difference)
• Ending batteries: 46%

Day 2 – Continued clouds

Morning:

• Started batteries: 46%
• Solar production: 8 kWh (darker clouds)
• Consumption: 18 kWh
• Net: -10 kWh
• Ending batteries: 25%

Day 3 – Still cloudy

Morning:

• Started batteries: 25%
• Solar production by noon: 3 kWh
• Consumption by noon: 9 kWh
• Battery status: dropping to 13%

12:00pm – Decision time:

• Batteries: 13% (getting low!)
• Forecast: clouds continuing
• Action: Start generator

Generator operation:

• Run 4 hours (12pm-4pm)
• House load: 1,200W average
• Battery charging: 6,500W
• Total from generator: 31 kWh
• Batteries: 13% → 75%

Result:

• Batteries recharged safely
• Avoided deep discharge
• Cost: 4 hours generator runtime, ~2 gallons propane
• Ready for continued cloudy weather

Complete cycle visualization:

24-Hour Energy Balance:

Daily totals:

• Solar production: 42 kWh
• Consumption: 24 kWh
• Surplus: 18 kWh (stored in batteries, some wasted if full)

My typical daily energy flow patterns:

Summer day:

• Production: 48 kWh
• Consumption: 24 kWh (higher due to AC)
• Surplus: 24 kWh (batteries full by 10am, lots of throttling)
• Batteries: full all afternoon/evening

Winter day:

• Production: 30 kWh
• Consumption: 18 kWh (lower, no AC)
• Surplus: 12 kWh
• Batteries: full by 2pm, less waste

Spring/Fall day:

• Production: 40 kWh
• Consumption: 18 kWh
• Surplus: 22 kWh
• Batteries: full by noon, moderate waste

Cloudy winter day:

• Production: 9 kWh
• Consumption: 18 kWh
• Deficit: 9 kWh (from batteries)
• Batteries: may need generator if consecutive days

Understanding this energy flow helps you:

• Know when to run high loads (mid-day when solar abundant)
• Understand battery state of charge changes
• Recognize when generator might be needed
• Optimize energy usage for system efficiency

The beauty of the system is it’s mostly automatic—charge controller and inverter manage everything. But understanding the flow helps you make smart decisions about when to run major loads and when to conserve.

---

System Sizing: How Much Solar Do You Need?

Now that you understand the components and energy flow, let’s size a system. This is where beginners struggle most—determining how much solar, battery, and inverter capacity they actually need.

Start with daily consumption (kWh/day):

Everything begins with this one number:

How much energy do you use per day?

This single number determines:

• How many solar panels you need
• How much battery storage required
• What size inverter necessary
• Total system cost

How to find your consumption:

Method 1: Electric bills (if currently on grid)

• Find monthly kWh usage
• Divide by days in month
• Example: 750 kWh ÷ 30 days = 25 kWh/day

Method 2: Measure with Kill-A-Watt meter

• Plug into major appliances for a week
• Record kWh consumed
• Add up all appliances
• More accurate than estimating

Method 3: Calculate from appliances

• List all appliances
• Note wattage and hours used
• Multiply: watts × hours ÷ 1000 = kWh
• Add everything up

My recommendation: Use method 1 if available (most accurate for real-world usage)

How to measure current usage:

Let me show you the calculation method:

Example house:

This is baseline—before AC, heating, or major loads!

Typical home: 20-30 kWh/day:

Reality for most American homes:

Small efficient home: 10-15 kWh/day

• 1-2 people
• Small square footage
• LED lighting
• Energy Star appliances
• Gas/propane for heat and cooking

Medium typical home: 20-30 kWh/day

• 2-4 people
• 1500-2500 sq ft
• Mix of appliances
• Some AC or electric heat
• Most common category

Large home: 40-60+ kWh/day

• 4+ people
• 3000+ sq ft
• Central AC
• Electric everything
• High consumption lifestyle

Efficient home: 10-15 kWh/day:

What an efficient off-grid home looks like:

Efficiency measures:

• All LED lighting (saves 3-4 kWh/day vs incandescent)
• Energy Star appliances (saves 2-3 kWh/day)
• Propane for heating, cooking, hot water (saves 8-12 kWh/day)
• Good insulation (reduces heating/cooling)
• Energy-conscious habits

My efficient home:

• Started at 30 kWh/day (typical usage)
• Implemented efficiency measures
• Now at 18 kWh/day
• Saved 40% through efficiency!

This matters because:

• 12 kWh/day reduction
• = 4-5 fewer solar panels needed
• = Smaller battery bank
• = $8,000-12,000 saved on system cost

Efficiency is cheapest “solar panel” you can buy!

My consumption: 18 kWh/day:

Let me break down my actual usage:

Fixed/essential loads (can’t easily reduce):

• Refrigerator: 2.4 kWh/day
• Freezer: 1.8 kWh/day
• Well pump: 0.3 kWh/day
• Subtotal: 4.5 kWh/day (25%)

Regular loads (use daily):

• Computers/office: 3.0 kWh/day
• Lighting: 0.6 kWh/day
• TV/entertainment: 0.5 kWh/day
• Kitchen appliances: 1.5 kWh/day
• Devices/charging: 1.0 kWh/day
• Subtotal: 6.6 kWh/day (37%)

Periodic loads (few times per week):

• Washing machine: 1.0 kWh/day averaged
• Dishwasher: 1.5 kWh/day averaged
• Shop tools: 1.0 kWh/day averaged
• Subtotal: 3.5 kWh/day (19%)

Seasonal loads:

• Summer AC: 6-8 kWh/day (adds to summer total)
• Winter heating: 0 (propane)

Miscellaneous:

• Phantom loads: 1.0 kWh/day
• Unexpected: 1.5 kWh/day buffer

Total:

• Winter: 16-18 kWh/day
• Summer: 24-26 kWh/day
• Annual average: 18 kWh/day

Solar panel calculation overview:

Once you know consumption, calculate panels needed:

Basic formula (from earlier article): Panels needed = Daily kWh × Multipliers ÷ Peak sun hours ÷ Panel watts

Multipliers include:

• System losses (1.3×)
• Battery charging (1.2×)
• Weather safety (1.2-1.5×)
• Total multipliers: ~1.9-2.3×

Example for my 18 kWh/day:

• Daily consumption: 18 kWh
• Winter peak sun: 3.8 hours
• Multipliers: 1.9× (conservative)
• Panel watts: 400W (0.4 kW)

Calculation: 18 × 1.9 ÷ 3.8 ÷ 0.4 = 22.5 panels

I have 20 panels (slightly undersized, hence occasional generator use)

Link to detailed sizing article: [Reference to “How Many Solar Panels” article]

Battery bank sizing for days of autonomy:

Battery sizing separate calculation:

Formula: Battery kWh = Daily consumption × Days autonomy ÷ Depth of discharge

Example for my system:

• Daily consumption: 18 kWh
• Desired autonomy: 2 days
• Battery type: Lithium (80% DOD)

Calculation: 18 × 2 ÷ 0.80 = 45 kWh total capacity

I have 34.5 kWh (about 1.5 days autonomy, plus generator backup)

Days of autonomy by climate:

• Sunny (Southwest): 1-2 days with generator backup
• Mixed (Southeast): 2-3 days recommended
• Cloudy (Northwest): 3-5 days essential

Inverter sizing for peak loads:

Inverter sizing based on maximum simultaneous loads:

My peak loads:

• Refrigerator: 200W running, 600W surge
• Freezer: 180W running, 540W surge
• Well pump: 900W running, 2700W surge
• AC unit: 1200W running, 3600W surge
• Microwave: 1200W
• Lights: 150W
• Computer: 250W

Scenario: Many loads simultaneously

• Fridge + freezer + lights + computer: 780W
• Well pump starts: + 2700W surge = 3480W
• Need: 3500W continuous, 7000W surge minimum

My inverter: 10,000W continuous, 20,000W surge

• Oversized for comfort
• Can handle any combination
• Future-proofed for expansion

Sizing recommendation: Peak loads × 1.3 + largest surge

Safety margins and why they matter:

Always include safety margins:

Panel sizing: Add 20-30% to calculated needs

• Accounts for degradation
• Weather worse than expected
• Consumption increase over time

Battery sizing: Add 20% to calculated needs

• Provides deeper autonomy
• Accounts for capacity loss over time
• Buffer for unexpected usage

Inverter sizing: Add 30% to peak loads

• Handles unexpected simultaneous loads
• Surge capacity for motor starting
• Headroom for future expansion

My margins:

• Panels: Calculated 22, have 20 (10% undersized—mistake!)
• Batteries: Calculated 45 kWh, have 34.5 kWh (23% undersized)
• Inverter: Calculated 7000W, have 10,000W (43% oversized—good!)

Lesson: Better to oversize than undersize! Undersized panels and batteries means generator use.

Example system sizes (small, medium, large homes):

Small home example (10 kWh/day):

• Solar: 12-15 panels (5-6 kW)
• Battery: 20-25 kWh
• Inverter: 5000W
• Generator: 5000W
• Cost: $18,000-28,000

Medium home example (20 kWh/day):

• Solar: 24-30 panels (10-12 kW)
• Battery: 40-50 kWh
• Inverter: 8000-10,000W
• Generator: 7000W
• Cost: $35,000-55,000

Large home example (40 kWh/day):

• Solar: 50-60 panels (20-24 kW)
• Battery: 80-100 kWh
• Inverter: 15,000-20,000W
• Generator: 10,000W
• Cost: $70,000-110,000

These are realistic complete system costs including all components and installation.

Proper sizing is critical—under-sizing means constant generator use and frustration, oversizing wastes money. Take time to accurately measure consumption, understand your climate’s solar resource, and apply appropriate safety margins. The few extra hours spent on accurate sizing saves thousands in avoiding mistakes!

Understanding System Voltage (12V vs 24V vs 48V)

System voltage is a fundamental decision that affects every component you buy. Getting this wrong means incompatible parts and expensive replacements. Let me explain why voltage matters and which to choose.

Why system voltage matters:

Voltage affects everything in your system:

Wire sizing: Higher voltage = thinner/cheaper wire Component availability: 48V has most options for home systems Efficiency: Higher voltage = lower losses Expandability: Starting voltage limits future growth Cost: Some voltages more expensive than others

Think of voltage like plumbing pipe diameter:

• Small pipe (12V) = high resistance, thick pipes needed for flow
• Large pipe (48V) = low resistance, thin pipes work fine
• Same flow (power), different pressure (voltage)

Higher voltage = lower current = thinner wires:

This is the key advantage of higher voltage:

Power (watts) = Voltage × Current

• Same power can flow at different voltage/current combinations
• Higher voltage = lower current for same power
• Lower current = thinner wire needed

Example: 4800W load

12V system:

• Current: 4800W ÷ 12V = 400A
• Wire needed for 10 feet: 500+ kcmil (massive!)
• Wire cost: $30+ per foot
• Connections challenging (very large terminals)

24V system:

• Current: 4800W ÷ 24V = 200A
• Wire needed for 10 feet: 4/0 AWG
• Wire cost: $8 per foot
• Still very large

48V system:

• Current: 4800W ÷ 48V = 100A
• Wire needed for 10 feet: 2/0 AWG
• Wire cost: $4 per foot
• Manageable size and cost

Savings: 48V saves $260 on just 10 feet of wire in this example!

12V systems: small systems only (<1500W):

When 12V makes sense:

Appropriate for:

• RVs and boats (12V standard)
• Tiny cabins (<500W typical load)
• Portable/mobile systems
• Small solar generators
• Systems under 1500W total

My friend’s 12V RV system:

• 800W solar (2× 400W panels)
• 200Ah battery (2.4 kWh at 12V)
• 1500W inverter
• Powers: lights, TV, laptop, small fridge
• Works great for this application!

Why 12V doesn’t scale:

• 3000W load = 250A (wire nightmare)
• Battery bank gets huge (need parallel cells)
• Inverters limited to 3000W maximum typically
• Connections are safety concern (high current arcing risk)

Don’t use 12V for home systems!

24V systems: medium systems (1500-3000W):

24V is middle ground:

Appropriate for:

• Small cabins (1500-3000W)
• Weekend retreats
• Off-grid workshops
• Hybrid with generator as primary

Advantages over 12V:

• Half the current (smaller wire)
• More inverter options available
• Scales to 3000W reasonably

Disadvantages vs 48V:

• Still high current for large loads
• Fewer component options than 48V
• Can’t scale beyond ~3000W easily

My opinion: 24V is okay but 48V better unless budget extremely limited

48V systems: larger systems (3000W+) – RECOMMENDED:

48V is standard for residential off-grid:

Why 48V dominates:

Lower current:

• 10,000W load = 208A at 48V
• Manageable wire sizes
• Safe connections
• Reasonable costs

Best component availability:

• Most inverters 5000W+ are 48V
• Professional-grade equipment all 48V
• Quality charge controllers all support 48V
• Most lithium batteries designed for 48V

Industry standard:

• Professional installers use 48V
• Proven reliable for homes
• Extensive documentation and support
• Large user community

Scalability:

• Start with 5kW, expand to 20kW+ easily
• Add panels, batteries, even inverters
• No voltage conversion needed

Efficiency:

• Lower current = less wire loss
• Better inverter efficiency at 48V
• Reduced heat generation

My 48V system:

• 8kW solar array
• 34.5 kWh battery (48V × 720Ah)
• 10kW inverter
• Wire costs reasonable ($800 total vs $2000+ for 24V)

Why I chose 48V:

• Building permanent home system
• 8-10kW range requires 48V
• Want ability to expand later
• Best equipment availability
• Industry standard = less risk

Professional systems almost always 48V:

Talk to any professional installer:

What they say:

• “We only install 48V for homes”
• “12V and 24V don’t scale”
• “48V has best equipment”
• “Future-proofing requires 48V”

Their standard package:

• 48V battery bank
• 48V charge controllers
• 48V inverter (8-15kW typical)
• Proven, reliable configuration

Exception: RVs and boats still use 12V (that industry standard)

Don’t mix voltages!

Critical rule: All components must be same voltage!

What must match:

• Battery bank voltage
• Charge controller output voltage
• Inverter input voltage

Can be different:

• Solar panel voltage (charge controller converts)
• Generator voltage (inverter/charger converts)

Common beginner mistake:

• Buy 24V battery bank
• Find great deal on 48V inverter
• They don’t work together!
• Have to return/replace one

Before buying anything: Decide on system voltage (choose 48V for homes!)

Converting between voltages (expensive and inefficient):

What if you must convert?

DC-DC converters exist:

• Convert 48V to 24V
• Or 24V to 12V
• Cost: $200-800
• Efficiency: 90-95% (lose 5-10%)
• Added complexity

Example:

• 48V system but need 12V for RV accessories
• Buy 48V → 12V converter
• Pay $300
• Lose 5% efficiency
• Just adds complexity!

Better solution: Start with right voltage from beginning

My mistake (small one):

• Started with plan for 24V
• Bought 24V charge controller
• Realized 48V better before buying batteries
• Returned charge controller for 48V version
• Glad I caught it early!

My recommendation:

For any home system over 1500W: Choose 48V. Period.

Advantages:

• Industry standard
• Best equipment selection
• Scales from 3kW to 30kW+
• Lower wire costs
• Better efficiency
• Easier to find help/support
• Future-proof

Disadvantages:

• Slightly more expensive batteries than 24V (negligible)
• That’s it—no real disadvantages!

Don’t overthink this: 48V is the right choice for 95% of home off-grid systems.

System voltage is foundational—choose wrong and you’ll regret it when you can’t expand or find compatible components. For home systems, 48V is proven, standard, and scales well. Don’t try to save $200 on a 24V system and limit yourself forever!

---

Conclusion

After three years living completely off-grid powered by solar, running my own system through every season and weather challenge, and helping friends plan their systems, here’s what I want every beginner to understand: off-grid solar is absolutely achievable, but it’s more complex than marketing materials suggest and requires more planning than “just buy panels and batteries.”

The five components—solar panels, charge controller, battery bank, inverter, and backup generator—must all work together as an integrated system. You can’t cherry-pick the cheapest component in each category and expect them to play nicely. Each component must be properly sized for your needs, matched in voltage, and compatible with the others. A quality 48V lithium battery bank, professional MPPT charge controller, pure sine wave inverter, and backup generator together create a reliable system that powers modern living.

My biggest lessons learned: First, energy efficiency before solar capacity. I spent $3,000 on efficiency improvements (LED lighting, efficient appliances, propane for heat/cooking) and saved more than $10,000 in solar/battery costs versus just buying a bigger system. Every kWh you don’t need to generate is the cheapest solar panel you’ll never buy. Second, design for winter worst-case, not summer best-case. Sizing for annual average sun hours left me undersized and running generators constantly until I added more panels. Third, don’t cheap out on batteries—they’re the heart of the system. My $16,800 lithium battery investment will save me over $20,000 compared to lead-acid over 15 years while requiring zero maintenance.

For beginners starting from scratch, I recommend: Start by measuring actual consumption for at least a month. Be honest about what you’ll really use, not what you hope to reduce to. Then choose 48V as your system voltage (trust me on this—it’s industry standard for good reasons). Size your solar array for worst-case winter sun in your location, not annual averages. Buy quality lithium batteries with proper BMS—the premium is worth it. Get a pure sine wave inverter sized with 30-40% headroom above your peak loads. Include MPPT charge controllers from reputable brands. And accept that you’ll need a backup generator—it’s not failure, it’s realistic system design.

The typical beginner budget for a functional off-grid system powering a normal home (20 kWh/day consumption): $35,000-55,000 installed. Yes, that’s expensive. No, you can’t do it right for $15,000 unless you have very modest needs or significant DIY skills. The solar panels themselves are the cheapest part—it’s the batteries, inverter, and proper installation that cost money. But this investment provides 20-30 years of energy independence, zero monthly electric bills, power during grid outages, and the satisfaction of generating your own clean energy.

Can you DIY? Maybe. I did most of my installation myself and saved about $8,000 in labor. But I have electrical experience and I’m comfortable working with high-voltage DC systems. If you’re not confident with electrical work, hire professionals for at least the electrical connections and commissioning. Get professional design review even if DIY installing—spending $500 on expert advice can save $5,000 in mistakes. And no matter what, get proper permits and inspections. Your insurance and safety depend on code-compliant installation.

My honest assessment after two years: Off-grid solar works beautifully when designed properly. My system powers everything in a modern 2000 sq ft home—computers, TV, full kitchen, well pump, washing machine, even window AC units in summer. I monitor battery levels daily and adjust usage during cloudy weather, but it’s become second nature. I run my generator 60-90 hours per year, mostly in December-January during extended cloudy spells. Total annual cost including generator fuel and maintenance: about $200, versus the $1,200-1,800 annual electric bills I’d pay on grid.

Would I do it again? Absolutely—but I’d do it differently. I’d start with efficiency improvements before sizing the system. I’d buy the full 24-26 panels my calculations said I needed instead of trying to save money with 20 panels. I’d get professional design review before ordering $30,000 in equipment. And I’d join off-grid communities online before starting to learn from others’ mistakes instead of making them all myself.

If you’re considering off-grid solar, start with education. Read guides like this, watch experienced off-gridders on YouTube, join forums like DIY Solar and Solar Panel Talk, and talk to professional installers even if planning DIY. Understand the complete system before spending money. Calculate honestly with appropriate safety margins. Choose quality components from reputable brands. And build a properly designed system that actually works year-round rather than just looking good on paper during sunny summer days.

The freedom of energy independence is real and worthwhile. Generating your own power, living through grid outages without noticing, and never paying another electric bill provides satisfaction that’s hard to quantify. Just make sure you understand what you’re building and commit to doing it right. A well-designed off-grid solar system will reliably power your home for decades. A poorly designed system will frustrate you constantly and cost more in fixes than doing it right from the start.

Now you have the complete picture: components, energy flow, sizing calculations, installation considerations, realistic costs, and honest expectations. If you’re ready to start, begin with accurate consumption measurement, design for your worst-case conditions, budget realistically, and either hire professionals or deeply educate yourself before DIY. The initial investment is substantial, but a properly designed off-grid solar system provides energy independence that lasts a lifetime.

Got questions about your specific situation or challenges? Drop them in comments—I genuinely enjoy helping people avoid the expensive mistakes I made. And if this guide helped you understand off-grid solar, share it with anyone planning their own system. Accurate information from real experience beats expensive trial-and-error every time! ☀️🔋🏡
